Using Clustering Algorithms to Analyze Golf Shots from the U.S. Open

Cluster analysis can be considered one of the pillars of machine learning, and yet it’s one that’s difficult to talk about.

First off, it’s difficult to find specific use cases for clustering, other than pretty pictures. When looking through the wiki page on clustering, we’re told one of the uses is market research, where analysts use surveys to group together customers for market segmentation. That sounds great in theory, but the results don’t end with specific numbers telling the researchers what to do. Second, in so many cases, the hardest part of data science projects, or tutorials, is finding real world data that have the different results you want to show. In this case, I’m incredibly lucky.

I have a golf background, and on U.S. Open’s website, they have these interactive graphs that show where each ball was located after each stroke for every player. If you click around, you can see who hit what shot, how far the shot went and how far remains between the ball and the hole. For cluster analysis, we’re going to use the location. For you to check out how I got the data, look and read here.

Shinnecock Hills, the host of the 2018 U.S. Open last week, has a few parts of the course where balls roll to collection areas into groups, or, ya know, clusters. Here are the specific shots our clustered data is coming from.

Hole 10, Round 1, Off the Tee

The description that the USGA gives hole number 10 is

The player faces a decision from the tee: hit a shot of about 220 yards to a plateau, leaving a relatively level lie, or drive it over the hill. Distance control is critical on the approach shot, whether from 180 yards or so to a green on a similar plateau, or with a shorter club at the bottom of the hill or, more dauntingly, part of the way down the hill. The approach is typically downwind, to a green with a closely mown area behind it.

First I’ll say, always hit driver off the tee. Look at the cluster! If you get it down the hill you’ll be in the fairway! In the vast, vast majority of the time, it’s better to be closer to the hole. Golf tips aside, when I first saw this graph, it popped out as a great example to use as a clustering example.

Shift command 4 if you want selective screenshots

When looking at this picture, the dots represent where the players hit their tee shots on hole 10 in the first round, and the colors show how many strokes it took them to finish the hole in relation to par. For this, we’re ignoring the final score and only looking at the shots themselves.

Hole 10, Round 1, Approaching the green

One data set isn’t good enough to demonstrate the differences of the algorithms, and I wanted to find an example of a green with collection areas that would make approach shots group together. Little did I know, the 10th green, the same hole as the one above showing the drives, is the best example out there. If you’re short, it rolls back to you. If you’re long, it rolls away. You gotta be sure to hit the green. You can see that here.

So this will be a second example of data for all the algorithms.

Algorithms themselves

This time, in this blog post, I’m only looking for results, not going through the algorithms themselves. There are other tutorials online talking about them, but for now at least, we’re only getting little introductions to the algorithms and thoughts.

Instead, I use the Scikit-Learn implementations of the algorithms. Scikit-Learn offers plenty of clustering algorithms, which I could spend hours using and writing about, but for this post, the ones I chose are K Means, DBSCAN, Mean Shift, Agglomerative Clustering.

Other Notes

Before going in to the algorithms, here are a few notes on what to expect.

  • Elevation is key as to why there are clusters. If you look around the other holes, you won’t see close to as much distribution and clusters of shot results. Now, if we had elevation as a data point as well, then we could really do some great cluster analyses.
  • The X and Y values on the sides of the graphs represent yards from the hole, which is located at the (0,0) location. If you look at the first post, I show that if you measure the hypotenuse using those X and Y numbers, you’ll have the yardage to the pin.
  • This isn’t a vast data set. We have 156 points in the two data sets because that’s how many players there were in the tournament.
  • If you’re wondering which part took the longest, it was writing the matplotlib code to automatically create figures with multiple plots for different input variables, and have them all show up at once. Presentation is key, and that took tons of time.

Code

I put all the code and data on Github here, so if you want to see what’s going on behind the scenes and what it took to do the analysis, look there.

Questions, comments, concerns, notes, thoughts, etc: contact, twitter, and golf twitter if you’re interested in that too. Ok, algorithm time.

K Means

I’m starting with K Means because this was the clustering algorithm I was first introduced to, and one that I had to write myself during a machine learning class in college.

Continue reading

U.S. Open Data — Gathering and Understanding the Data from 2018 Shinnecock

After losing in a playoff to make it out of the local qualifying for the 2018 US Open at Shinnecock, I’m stuck at my apartment watching everyone struggle, wondering how much I’d be struggling if I was there myself.

Besides on TV, the US Open website offers some other way to follow what players are doing. As shown here, they very generously give us information on everyone’s shots on different holes. We’re able to see where people hit the ball, on which shot, and what their resulting score was on the hole. For example, why in the world did Tony Finau, the currently second ranked longest hitter on tour, hit it short off the first tee, leave himself 230 yards to the hole where he makes bogey?

Why didn’t Tony rip D?

One of the cool things these images show is the groupings of all the shots on a hole, like the tee shots here. And when I see very specific and interactive data like we have here, I know it comes from somewhere that I’m able to see myself. So I figured I should grab that data and do some cluster analysis on different holes to see if there are certain spots that players like to hit it.

Here, I’ll go through the data we have, what the values and the numbers mean, and also the code I wrote to eat up the data and display the graphs. Once I have this part going, I’ll be able to perform further analysis to most things that come to mind.

Any questions, comments, concerns, trash talking, get in touch: twitter, contact.

Current Posts

Using Clustering Algorithms to Analyze Golf Shots

Finding the data

First step was to search for where the data for the hole insights page was coming from. As always, open the dev tools, click on the network tab, and find what’s getting called with a pretty name.

Alert!

The file itself is quite dense and has all the information, which is really cool! It has IDs for all the players, all the shots they have on the hole, which include the starting distance from the flag and the ending distance to the flag.

First off, we’re given a list of Ps, meaning an array of player information, like this:

...
{u'FN': u'Justin', u'ID': u'33448', u'IsA': False, u'LN': u'Thomas', u'Nat': u'USA', u'SN': u'THOMAS'},
{u'FN': u'Dustin', u'ID': u'30925', u'IsA': False, u'LN': u'Johnson', u'Nat': u'USA',u'SN': u'JOHNSON D'}
{u'FN': u'Tiger', u'ID': u'08793', u'IsA': False, u'LN': u'Woods', u'Nat': u'USA', u'SN': u'WOODS'}
...

It looks like we have first name, player’s ID, whether or not they’re an amateur, last name, nationality, scoreboard name. The important part of this information is the ID, where we’ll be able to match players to shots.

Next, we’re given a few stats on the hole for the day:

Continue reading

How To Write, Deploy, and Interact with Ethereum Smart Contracts on a Private Blockchain

Here are the rules: if you read this post all the way through, you have to deploy a smart contract on your private Ethereum blockchain yourself. I give you all the code I used here in Github so you have no excuses not to.

But if you don’t follow the rules and you only want to read, hopefully this helps give a perspective of starting with nothing and ending with a blockchain app.

By the end, you’ll have started a local private Ethereum blockchain, connected two different nodes as peers, written and compiled a smart contract, and have a web interface that allows users to ask questions, deploy the questions on the blockchain, and then lets the users answer.

If you’re confused, run into an error, or want to say something else, go ahead an write a comment, get in contact, or say something on Twitter.

Oh, and here’s the Github repo, so go ahead and fork  it (if you don’t want to copy paste all the code here) and then if you make updates you want to share, I’ll throw this in the README.

Private Blockchain Creation

To create a single node, we need the following genesis.json, which represents the initial block on the private blockchain.

//genesis.json
{
 "alloc": {},
 "config": {
   "chainID": 72,
   "homesteadBlock": 0,
   "eip155Block": 0,
   "eip158Block": 0
 },
 "nonce": "0x0000000000000000",
 "difficulty": "0x4000",
 "mixhash": "0x0000000000000000000000000000000000000000000000000000000000000000",
 "coinbase": "0x0000000000000000000000000000000000000000",
 "timestamp": "0x00",
 "parentHash": "0x0000000000000000000000000000000000000000000000000000000000000000",
 "extraData": "0x11bbe8db4e347b4e8c937c1c8370e4b5ed33adb3db69cbdb7a38e1e50b1b82fa",
 "gasLimit": "0xffffffff"
}

If you want a somewhat full explanation of the fields, look at this Stack Overflow answer. The big ones in our case here are difficulty being low, because we don’t want to have to wait long for blocks to be mined on our test network, and then gasLimit being high to allow the amount of work that can be done by a node in the block to be able to process every transaction.

Go ahead and open a terminal, make sure geth is installed in whatever way works for your OS, and then cd into the folder that you have your genesis.json file saved. Running run the following command will initialize the blockchain for this node.

$ geth --datadir "/Users/USERNAME/Library/PrivEth" init genesis.json

–datadir specifies where we want the all the data for the blockchain to be located. On a mac, the default is ~/Library/Ethereum. Since we have multiple nodes running, we can’t have them sharing the same data folder, so we’re going to specify. Linux and Windows machines have different default datadirs, so take a look at those to see in general where they should be located.

After running this init command with the genesis.json file we want to use, go checkout that --datadir directory. You’ll see a bunch of files, so feel free to poke around. Not necessary right now, but you’ll want to look around there eventually.

For this to be a blockchain, we need more than one node. For blockchains to become peers, we need them to have the same genesis file. So we’re going to run the same command as above, from the same directory, but this time with a different datadir.

geth --datadir "/Users/USERNAME/Library/PrivEth2" init genesis.json

With all the code here, we’re going to be working in the same directory. The code is the same, but with the command line options, we’ll be able to separate these processes by the command line arguments.

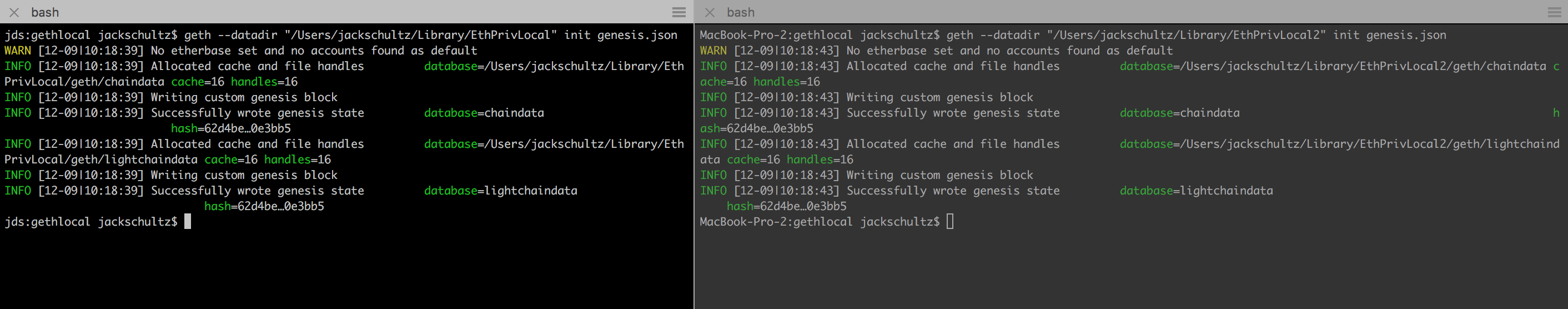

Initializing the chain for both nodes.

When running geth with a different --datadir, you’ll be running separate nodes no matter where you ran the command from. Just remember to specify the --datadir each time so it doesn’t fall back to default. Also note that I changed the names for these datadirs, so watch out if you see different names in the screenshots.

Opening the Consoles

So far, we’ve done three things. 1) Created a genesis.json file in a working directory of your choosing, 2) picked a directory to store the blockchain for one node and initialized the first block, and 3) picked a different directory to store the blockchain for the other node. Very little code and a few commands.

Continue reading

How to Build Your Own Blockchain Part 4.2 — Ethereum Proof of Work Difficulty Explained

We’re back at it in the Proof of Work difficulty spectrum, this time going through how Ethereum’s difficulty changes over time. This is part 4.2 of the part 4 series, where part 4.1 was about Bitcoin’s PoW difficulty, and the following 4.3 will be about jbc’s PoW difficulty.

TL;DR

To calculate the difficulty for the next Ethereum block, you calculate the time it took to mine the previous block, and if that time difference was greater than the goal time, then the difficulty goes down to make mining the next block quicker. If it was less than the time goal, then difficulty goes up to attempt to mine the next block quicker.

There are three parts to determining the new difficulty: offset, which determines the standard amount of change from one difficulty to the next; sign, which determines if the difficulty should go up or down; and bomb, which adds on extra difficulty depending on the block’s number.

These numbers are calculated slightly differently for the different forks, Frontier, Homestead, and Metropolis, but the overall formula for calculating the next difficulty is

target = parent.difficulty + (offset * sign) + bomb

Other Posts in This Series

Pre notes

For the following code examples, this will be the class of the block.

class Block():
  def __init__(self, number, timestamp, difficulty, uncles=None):
    self.number = number
    self.timestamp = timestamp
    self.difficulty = difficulty
    self.uncles = uncles

The data I use to show the code is correct was grabbed from Etherscan.

Continue reading

How to Build Your Own Blockchain Part 4.1 — Bitcoin Proof of Work Difficulty Explained

If you’re wondering why this is part 4.1 instead of part 4, and why I’m not talking about continuing to build the local jbc, it’s because explaining Bitcoin’s Proof of Work difficulty at a somewhat lower level takes a lot of space. So unlike what this title says, this post in part 4 is not how to build a blockchain. It’s about how an existing blockchain is built.

My main goal of the part 4 post was to have one section on the Bitcoin PoW, the next on Ethereum’s PoW, and finally talk about how jbc is going to run and validate proof or work. After writing all of part 1 to explain how Bitcoin’s PoW difficulty, it wasn’t going to fit in a single section. People, me included, tend get bored in the middle reading a long post and don’t finish.

So part 4.1 will be going through Bitcoin’s PoW difficulty calculations. Part 4.2 will be going through Ethereum’s PoW calculations. And then part 4.3 will be me deciding how I want the jbc PoW to be as well as doing time calculations to see how long the mining will take.

The sections of this post are:

  1. Calculate Target from Bits
  2. Determining if a Hash is less than the Target
  3. Calculating Difficulty
  4. How and when block difficulty is updated
  5. Full code
  6. Final Questions

TL;DR

The overall term of difficulty refers to how much work has to be done for a node to find a hash that is smaller than the target. There is one value stored in a block that talks about difficulty — bits. In order to calculate the target value that the hash, when converted to a hex value has to be less than, we use the bits field and run it through an equation that returns the target. We then use the target to calculate difficulty, where difficulty is only a number for a human to understand how difficult the proof of work is for that block.

If you read on, I go through how the blockchain determines what target number the mined block’s hash needs to be less than to be valid, and how that target is calculated.

Other Posts in This Series

Calculate Target from Bits

In order to go through Bitcoin’s PoW, I need to use the values on actual blocks and explain the calculations, so a reader can verify all this code themselves. To start, I’m going to grab a random block number to work with and go through the calculations using that.

>>>import random
>>> random.randint(0, 493928)
111388

Block number 11138 it is! Back in time to March of 2011 we go.

Continue reading

How to Build Your Own Blockchain Part 3 — Writing Nodes that Mine and Talk

Hello all and welcome to Part 3 of building the JackBlockChain — JBC. Quick past intro, in Part 1 I coded and went over the top level math and requirements for a single node to mine its own blockchain; I create new blocks that have the valid information, save them to a folder, and then start mining a new block. Part 2 covered having multiple nodes and them having the ability to sync. If node 1 was doing the mining on its own and node 2 wanted to grab node 1’s blockchain, it can now do so.

For Part 3, read the TL;DR right below to see what we got going for us. And then read the rest of the post to get a (hopefully) great sense of how this happened.

Other Posts in This Series

TL;DR

Nodes will compete to see who gets credit for mining a block. It’s a race! To do this, we’re adjusting mine.py to check if we have a valid block by only checking a section of nonce values rather than all the nonces until a match. Then APScheduler will handle running the mining jobs with the different nonce ranges. We shift the mining to the background if we want node.py to mine as well as being a Flask web service. By the end, we can have different nodes that are competing for first mining and broadcasting their mined blocks!

Before we start, here’s the code on Github if you want to checkout the whole thing. There are code segments on here to illustrate about what I did, but if you want to see the entire code, look there. The code works for me, but I’m also working on cleaning everything up, and writing a usable README so people can clone and run it themselves. Twitter, and contact if you want to get in contact.

Mining with APScheduler and Mining Again

The first step here is to adjust mining to have the ability to stop if a different node has found the block with the index that it’s working on. From Part 1, the mining is a while loop which will only break whenz it finds a valid nonce. We need the ability to stop the mining if we’re notified of a different node’s success.

Continue reading

How to Build Your Own Blockchain Part 2 — Syncing Chains From Different Nodes

Welcome to part 2 of the JackBlockChain, where I write some code to introduce the ability for different nodes to communicate.

Initially my goal was to write about nodes syncing up and talking with each other, along with mining and broadcasting their winning blocks to other nodes.   In the end, I realized that the amount of code and explanation to accomplish all of that was way too big for one post. Because of this, I decided to make part 2 only about nodes beginning the process of talking for the future.

By reading this you’ll get a sense of what I did and how I did it. But you won’t be seeing all the code. There’s so much code involved that if you’re looking for my total implementation you should look at the entire code on the part-2 branch on Github.

Like all programming, I didn’t write the following code in order. I had different ideas, tried different tactics, deleted some code, wrote some more, deleted that code, and then ended up with the following.

This is totally fine! I wanted to mention my process so people reading this don’t always think that someone who writes about programming does it in the sequence they write about it. If it were easy to do, I’d really like to write about different things I tried, bugs I had that weren’t simple to fix, parts where I was stuck and didn’t easily know how to move forward.

It’s difficult to explain the full process and I assume most people reading this aren’t looking to know how people program, they want to see the code and implementation. Just keep in mind that programming is very rarely in a sequence.

Twitter, contact, and feel free to use comments below to yell at me, tell me what I did wrong, or tell me how helpful this was. Big fan of feedback.

Other Posts in This Series

TL;DR

If you’re looking to learn about how blockchain mining works, you’re not going to learn it here. For now, read part 1 where I talk about it initially, and wait for more parts of this project where I go into more advanced mining.

At the end, I’ll show the way to create nodes which, when running, will ask other nodes what blockchain they’re using, and be able to store it locally to be used when they start mining. That’s it. Why is this post so long? Because there is so much involved in building up the code to make it easier to work with for this application and for the future.

That being said, the syncing here isn’t super advanced. I go over improving the classes involved in the chain, testing the new features, creating other nodes simply, and finally a way for nodes to sync when they start running.

For these sections, I talk about the code and then paste the code, so get ready.

Expanding Block and adding Chain class

This project is a great example of the benefits of Object Oriented Programming. In this section, I’m going to start talking about the changes to the Block class, and then go in to the creation of the Chain class.

The big keys for Blocks are:
